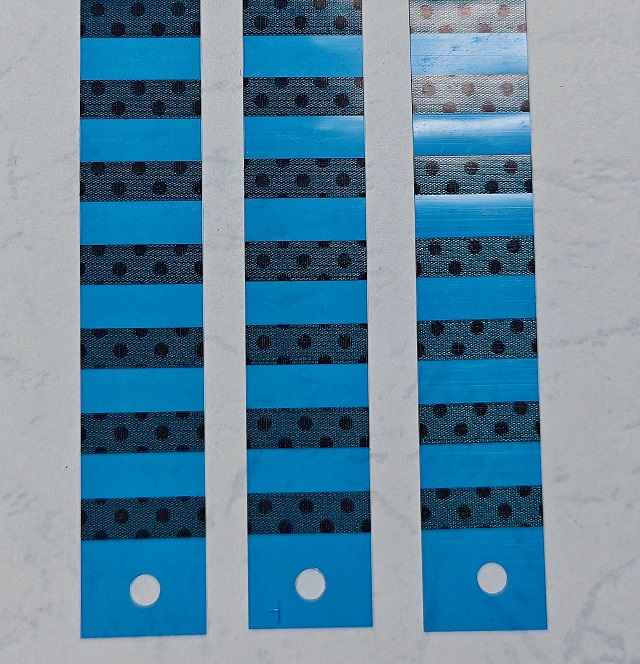

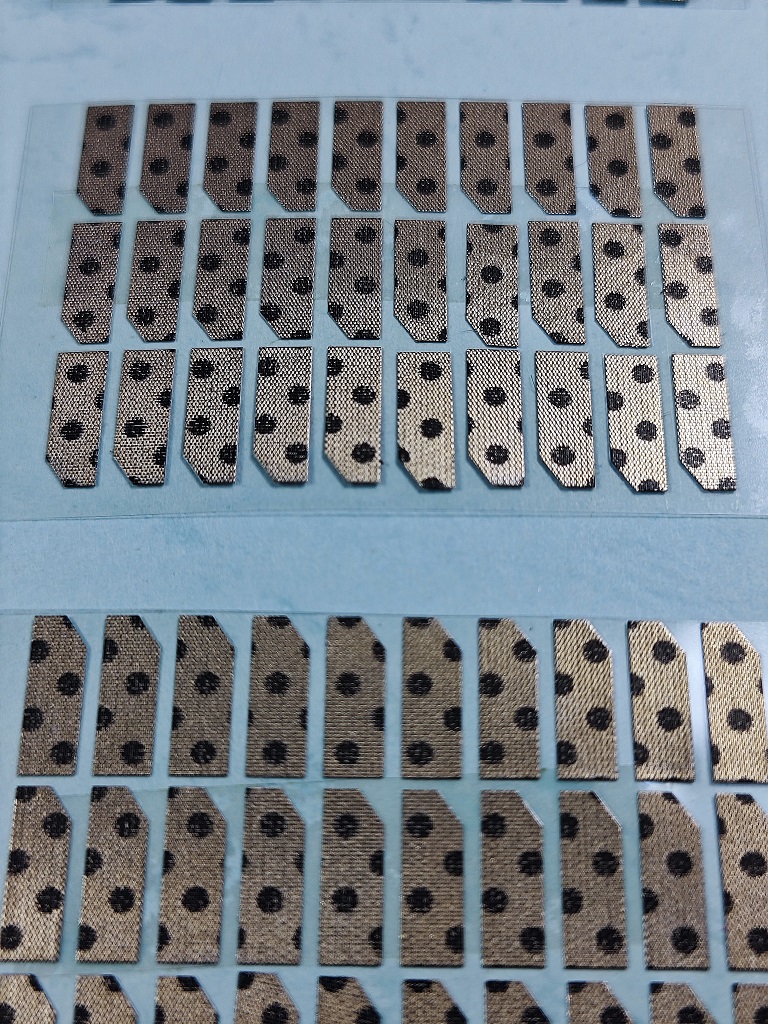

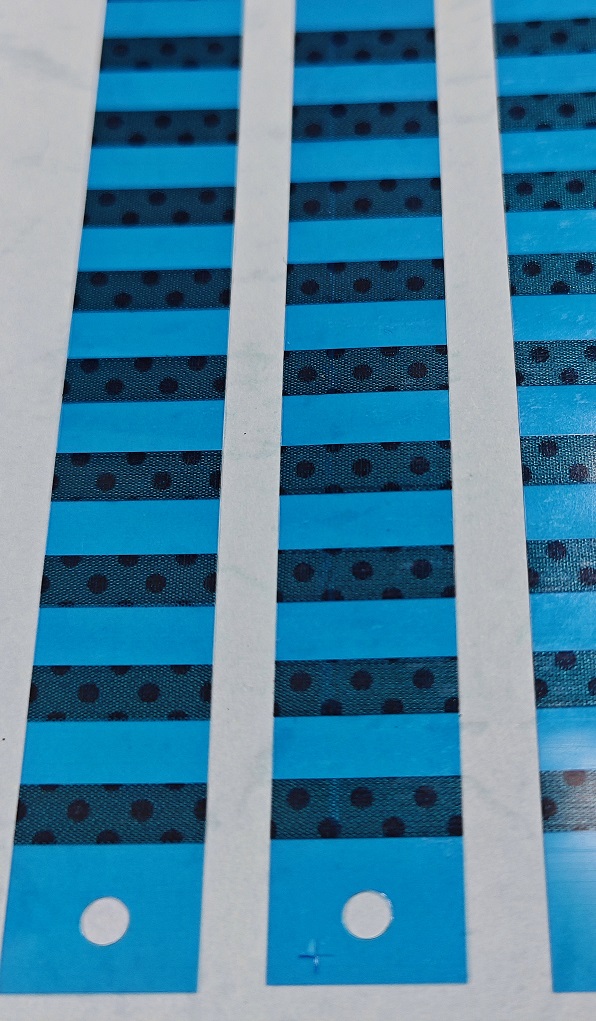

Conductive fabric die-cutting

Conductive cloth material is made on polyester fibers by chemical deposition or physical transfer of metal nickel onto the fibers. A highly conductive copper layer is then plated on the nickel, which is then electroplated with nickel metal that is resistant to oxidation and corrosion. The combination of copper and nickel provides excellent conductivity and good electromagnetic shielding effect, with a shielding range of 100K-3GHz.

Technical indicators

Surface resistance: ≤ 0.05 Ω/inch (100g load)

Shielding effect: 60 dB~80dB/30MHz~1GHz

Heat resistant temperature: -10 ℃ -110 ℃

Tensile strength: ≥ 1.3 (kg/25mm)

Initial adhesion force: 1600g/25mm

Maintain adhesion: 1440 Min/inch
